Hardware Test

+==========================================================+ A Ne01 ERA of EUROPA Dimentializ presents:
============================================================
*Ultra Modded Configuration Home-Made ( Chipped ,Modded , Forced & Tweaked; Overclocked), by  Ne01
:
============================================================


Processor: AMD ZEN k17 8/16 BLACK EDITION 8x3,7GHz

(3.9GHz-4.2GHz Gaming OC ) > 5.5GHz for LN Overclock, Zeppelin Workstation
>> Home Gaming Systems by Ne01™

MainBoard: Asus ROG Crosshair Hero VI x370 AM4, Ceramique ED, HYBRID Ready, CF, 4GHz NB (128GB/s Internal Bandwidth; 16 GT/s)

Memory:
G-Skill RipJawsV AMD OC 16GB DDR4 2x8GB Dual: 3200MHz CL15-16-16-34 1T 1.38v  / Gaming 3600MHz CL18-18-18-40 1T 1.42v

GPU: SAPPHIRE NITRO OC+ Radeon™ R9 FURY-X 4.5GB HBM with Back Plate /

Custom BIOS Unlocked to Fury-X / Undervolted + OC / 1050/570 1.168
HBM tMOD 1TB/s ! and 1.2GT/s !  internal strap from 300MHz to 400MHz !

Gaming Heavy: 1120/570 1.175v +12%POW (4k Gaming Easy)
Gaming Medium: 1050/570 1.144v +8%POW (1440p Easy)
Gaming Low: 948/570 1.074v -14%POW (1920:1440 80Hz Easy)

MAX Mode now: 1198/565 1.231v +25%POW

Physics AGEIA:  285GTX 1200MB 600MHz Hybrid-MODE 01 (rare in PC)


Sound_Card: SB-Z Gamer ED, PCIe Gold Plated with Nichicon “Fine Gold”  Japan-Plati Capacitors Mod (Hardware DTS™ , DolbyDigital™ )

PSU: XFX/Seasonic BlackEd. 760W/1000W MAxOut Platinuum ED with Silver\OUreliUM All Japan Components

CPU Cooler: Cooler Master AiO WC Nepton 280L with Cold-Water MOD + Add 3200rpm Side Fan (Copper Solid™ Base & Radiator with HRSI™ )

1_SSD: Samsung 850 Pro 512GB - for System & Games
2_SSD: SanDisk Extreme Pro II ; 128GB - Games & HDD Cache
3_HDD:  SEAGATE Baracuda 3TB SATA 6 128MB (9200 rpm) (RAID0 ready) - Games

4_HDD: SEAGATE 4TB 128MB SATA 6 (9200 rpm) - Storage

OS:  Win_X x64Bit Pro - Customized for xTreMe Gaming !

Optical_Drv: LG DVD-RW GH22LS50 LightScribe SATA II

CASE Type: BIG Tower Corsair 750D Obsidian SilentO MoD, Brushed Aluminium, 5 fans/dust free

Monitor Neo LED: iiyama ProLite XUB2792QSU-B1 1440p 2-3ms 71-74Hz 10/12Bit with FreeSync™ [Low HDR Mode Ready: 400Nits 10Bit]


Keyboard: Razer Death-Stalker LED, 1000Hz Ultra Pooling 0.01ms Pro Gamer ED

Mouse: A4Tech X-7 Oscar 748K, 1000Hz Reports/sec, 0.1ms XtreME Gamming ED

GamePad #1: PS4 DualShock4 for Gaming
GamePad #2: PS2 DualShock2 for Gaming

Sound System: Genius SW-HF 5.1 600W/Music Sound System (Wooden ED) + Hi/Fi™  cables; Solid Japan Capacitors

Cables: Hi-Fi - Efi Carbon Platinum Ed.

=========================================================================

My RIG (some changes accured, pic. not updated yet)


My Fury Nitro-X OC+



And my President Chair (Echter Leather/Wooden very Large)









#####################################################################################
New:
For Game Tests Stable 4.0Ghz 1.375v 2940MHz CL14-14-14-34-50 1T
For OC Bench Tests Stable 4.05Ghz 1.417v 2940MHz CL14-14-14-34-50 1T

Fury-X at:
1050/570 -42mV (1.168v) +8%  ~POW 220tW
and

1120/570 +6mV (1.218v) +12% ~POW 250tW
Max
1198/565 at 1.231v +25% ~POW 280tW

Old:
For Tests Stable 4.0Ghz 250FSB | 2.8GHz NB | 2.55GHz HT
2000MHz RAM CL9 1T 1.64v
GPU Sapphire NitroX OC+ 1050/570 1.212v +8% POW

For Gaming:
CPU 3.9GHz 1.45v 249FSB 2.8NB 2.55HT RAM: 2000 CL9 1T 1.64v
GPU Sapphire NitroX OC+ 933/570 1.212v -48mV -14% POW

For Benchmarks:
4.11GHz 1.53v 250FSB 2.8NB 2.55HT
GPU Sapphire NitroX OC+ 1120/570 1.212v +10% POW

Ultra OC -> Stable for some tests 4.33GHz 1.62v ;-) Temps less than 52 deg. cels.
Phase Change up to 5GHz 1.72v !
GPU Sapphire NitroX OC+ 1175/570 1.212v +48mV +12% POW

*******************************************************************
Some of My History with Gaming, in the Begining there was:

1.  Magnavox Odyssey Table Tennis 1972 (memorable Day)

2.  ATARI XL -> Commodore 64 -> Commodore 128

3.  AMIGA 500 -> 1200 -> 4000 (with AMIGA Monitor color/stereo)

4.  ATARI Jaguar

5.  PC Pentium 486 32MB with Gravis UltraSound on NT (DOOM !) -> P60 -> P90 (on CRT 15" then 17")

6.  Nintendo 64

7.  PC AMD K6-III 3D'now

8.  PC AMD Athlon XP-M 32bit on ABIT NF7 + 1GB RAM Dual + nV 6600 GT 256MB

9.  PC AMD Athlon 64FX + 2GB DDR Dual + SB X-Fi xTreme Gamer on

Radeon X1950 512MB + CRT 22" CompaQ 1210

10. PSX 2 / X-Box 360

11. PC AMD Athlon X2 x64 4600+ 4GB DDR2 Dual on Radeon 3850 AGP

12. PC AMD Athlon X2 x64 4600+ 4GB DDR2 Dual on PCe nV 285GTX + Biostar NF500 AM2

13. Pentim  DualCore G6951 3GHz + 4GB Dual on nV 285GTX + EVGA P55 SLI

14. AMD Phenom II on ASUS Sabertooth 990FX (Current RIG)

NeXt will be AMD Zen+ 12-16 cores + DDR4 32-64GB

 ###########################################################

 New Best July 2017yas for 1120/569 1.218v +12%POW

17.7.1 July17 ReLivE WHQL, WDDM 2.2 by Ne01™ on AMD ZEN k17 8/24 4.018GHz | 2941MHz CL14 1T





+++++++++++++++++++++++++++++++++++++

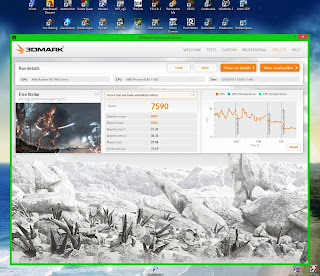

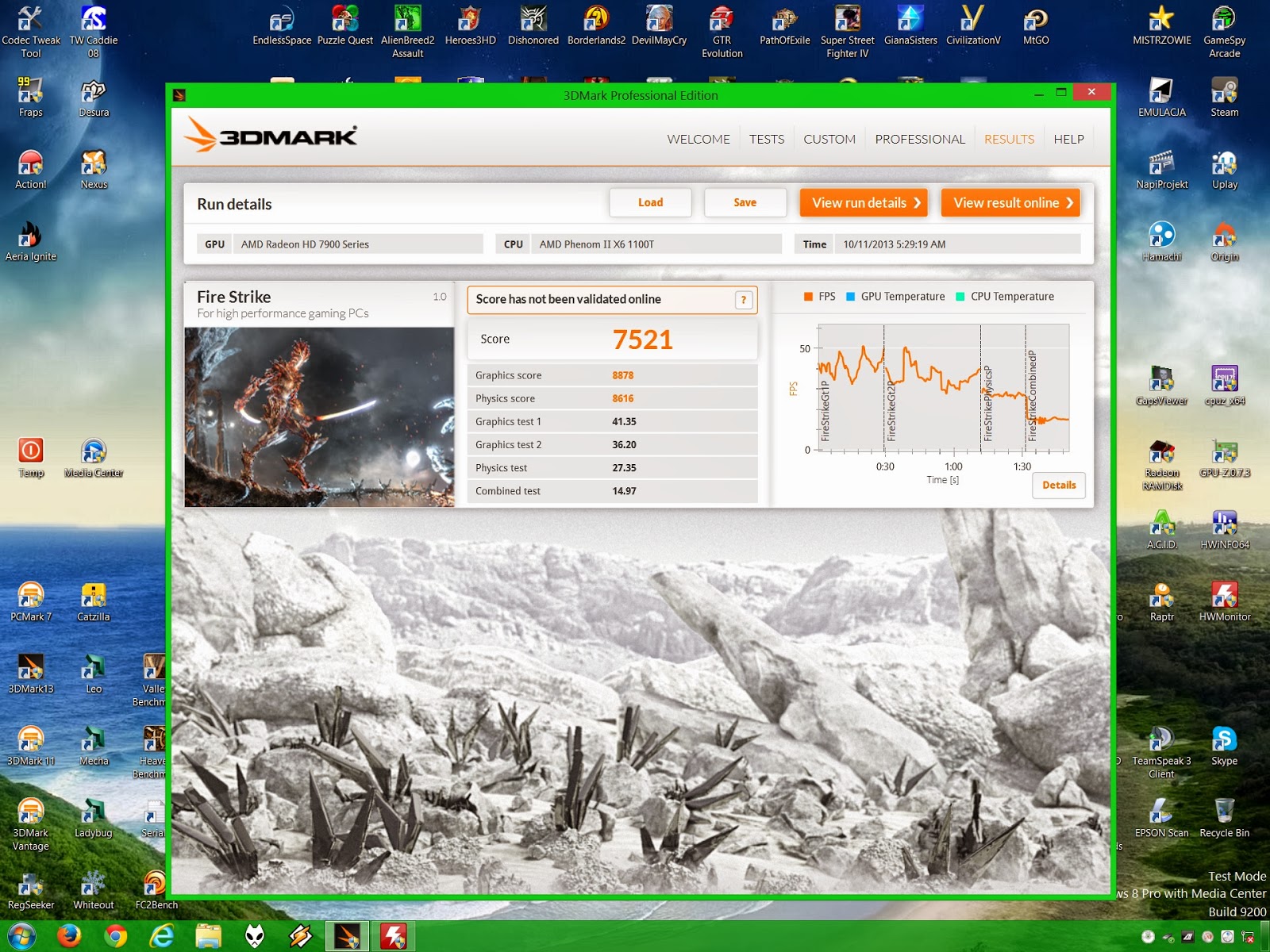

                                                     And Some Standard Tests for Gaming:

                                            CPU at 3.8GHz XFX 7970GHz on  1150/1600 :














                     And New Tests on CAT 13.11Bv2 4.06Ghz 246FSB XFX on 1180/1650











                      And New Tests on CAT 13.11 Beta v6, 4.07Ghz 246FSB XFX on 1180/1650













        And the CAT 13.30 RC3 Beta  4.07Ghz 246FSB XFX on 1179/1650  1260v +20 Power















                            CAT 14.3 Beta  4.07Ghz 246FSB XFX on 1180/1650  1260v +20 Power







                                                  3.94GHz - 246FSB - RAM 1645 CL8

                                            CAT 13.12 XFX DD GHz Default and 1180/1650









                                          CAT 14.3 Beta XFX DD GHz Default and 1180/1650






                                                   XFX  Stock 1920:1440 75Hz Ultra Q



                                          CAT 14.4 RC1 XFX DD GHz Default & 1180/1650






                                                   XFX  Stock 1920:1440 75Hz Ultra Q



           The New Specs :
           Phenom II 4.1GHz 232FSB 1.48v 2.8GHz NB 2.36GHz HT
          Corsair Black 1866 MHz 1.57v CL9 2T (9.9.9.29.40)
       Cooled by CM Nepton 280L (1Fan) MAX temp 48 deg. celsius
        XFX DD GHzED Default 1.169v & 1179/1650 1.26v
CAT 14.6 Beta R1.1





         The New Specs :
       Phenom II 4.1GHz 232FSB 1.48v 2.8GHz NB 2.12GHz HT
      Corsair Black 1866 MHz 1.59v CL9 1T (9.9.9.24.37)
      Cooled by CM Nepton 280L MAX temp 48 deg. celsius
         XFX DD GHzED Default 1.169v & 1179/1650 1.260v



And my OC Mega Score:



=======================
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^

   The New Specs :

      Phenom II 4.1GHz 232FSB 1.49v 2.8GHz NB 2.55GHz HT
        Corsair Black 1866 MHz 1.59v CL9 2T (9.9.9.30.41)
        Cooled by CM Nepton 280L MAX temp 48 deg. celsius
         XFX DD Black R280X Default 1050/1550 1.175v and 1075/1650 1.218v
        RAID 0 Supported by SanDisk SSD Ultra II as cache

===============



Now im waiting for Win10 update or RTM ;-)
So next Tests will be in DX12 tier 3 GCN on Win_10 MC.Ed

==================================

So Win_X is Here and DX12 Up & Running Great !

Let's look on Some Early Tests in DX12

CPU: 3.97GHz 248FSB NB 2.75GHz HT 2.55GHz
RAM RipJawsX ~2000MHz CL9 1T 1.63v


===========================

3D Mark API Overhead Test Mantle/DX12:
XFX 280X 1025/1500 1.63v +20% POW

OC don't work for 3Dmark ;-) some bug lol


=============================================

Ashes of the Singularity DX12 Heavy Bench
Full + CPU Only




Game Benchmark runs smooth as a butter ;-)
I think we have revolution in DX12
THX goes to AMD/ATI for Mantle !
Khronos for OGL Vulcan !
and MpS for DX12 API with 3 diferent feature levels !

=============================

Custom MOD 16.7.3WHQL + 16.300.2201.0 July 7 WHQL:

3Dmark13:
FireStrike P 3.91GHz
10.700 - GPU: 15.399 PhY: 8145 \ 1050/570 -42mV 0% POW 247tW

FireStrike P 4.00GHz
11.117 - GPU: 15.544 PhY: 8476 \ 1050/570 0mV +8%  POW 258tW
11.478 - GPU: 16.735 PhY: 8481 \ 1120/570 0mV +10% POW 268tW

FireStrike X 4.00GHz
7048 - GPU: 8077 PhY: 8491 \ 1125/570 0mV +12% POW 280tW
6943 - GPU: 8035 PhY: 8479 \ 1120/570 0mV +10% POW 275tW

SoM:
935/550    1.212v -48mV -14%POW 55%Fan -> 61 154 45 (170tW / HBM 10tW) - FPS CAP 61

Best FireStrike P 4.00GHz GPU score 1122MHz = 16.816

Waiting for ZEN x8/16 now to finally change my archaic x6 CPU ;-)

=================================================

My BIOS with Unlocked All CU's + Timing Mod + HBM Voltage Mod to 1.319v



===================================
